Dudek Warp Paraglider

$3,700.00

The Dudek Warp Paraglider is our new high-end sports performance paramotor wing for experienced pilots, searching for speed, agility and economy in one package, who participate in classic and/or slalom competitions and are perfectly familiar with active piloting.

Want to Learn More About The Warp?

Description

The WARP by Dudek Paragliders:

FROM THE MANUFACTURER: “The Warp is our new high-end sports performance paramotor wing for experienced pilots, searching for speed, agility and economy in one package, who participate in classic and/or slalom competitions and are perfectly familiar with active piloting.

Comparing it to our other performance designs, we can say that Warp is the bringing together of Snake XX and Hadron XX. Faster than both, it is as agile as Snake XX and efficient as Hadron XX. In thermal conditions, its behavior is similar to a free-flying wing, with a good climb, glide and intuitive operation.

Designed purely for advanced pilots with winning in mind. We strongly recommend a minimum of 100 hours airtime on similar class (Snake, SnakeXX, Hadron, Hadron 1.1, HadronXX), with a minimum of 300 hours of total paramotor flight. These recommendations are not exaggerated, and we strongly advise you to take them seriously.

The Warp is a hybrid of 3 and 4-liner, since only such arrangement allows full adjustability of the profile geometry via the trimmer, speed and PA system (Power Attack) operation.

Shark-nose on the leading edge provides greater aerodynamics of the canopy and higher internal pressure at a wide range of angles of attack. The leading edge is stiffened with synthetic rods (Flexi Edge Technology), which significantly improve the launch quality and guard against deformations during high-speed flight. In addition, the leading edge is further stabilized by the reinforcements between the cells (LE2R technology – Leading Edge Double Reinforcements).

The all-new riser system provides excellent control in accelerated flight. A large speed range is achieved with the standard speedbar travel.
The PA (Power Attack) system, which we introduced to the sport in 2009, was initially adapted to individual paragliders and made available for the very best pilots only. In Warp, the PA system combines the speed system with the trimmer in a permanent manner, yet allowing for independent adjustment of the trimmers, which is very useful during some combined tasks.
The B riser is suspended on a pulley, minimizing resistance during speed system operation.

Warp as standard comes equipped with 2D controls. In the 2D layout, both the main control and the tip steering line are attached to the main control handle. This system allows the pilot to either independently control the tip of the wing and the center of the trailing edge, or both at once. Thanks to the separation of the main control, the experienced pilots can adjust the progression of pulling the trailing edge to suit their preferences. Warp does not have a separate small TST handle, which simplifies control over the riser system both during takeoff and in flight.

Trimmers and speed system allow you to change of angle of attack and raise the rear part of the wing, so that its projected surface and chord decrease by circa 15%, increasing the loading and speed of the wing as well as moving the center of pressure (lift) forward, thus increasing the longitudinal stability of the wing. This change in load gives the Warp greater resistance to collapses and increases its projected aspect ratio so that the pilot can enjoy better performance and stability, especially at higher speeds.”

INCLUDES:

  • MotoBag (backpack for tight canopy packing, without harness)
  • DewBag (quickpack)

SPECS (from Dudek’s website):

Dudek Warp Sizes: 15
16 17 18 20 22 24
Approval – ULM Identification pending pending pending pending pending pending pending
Number of cells 60 60 60 60 60 60 60
Wing area flat [m2] 15.00 16.00 17.00 18,00 20,00 22,00 24,00
Wing area projected [m2] 12.87 13.72 14.58 15.44 17.15 18.87 20.58
Wingspan flat [m]  9.49 9.80 10.10 10.39 10.95 11.49 12.00
Wingspan projected [m]  7.63 7.88 8.13 8.36 8.81 9.24 9.65
Aspect ratio flat 6.00
Aspect ratio projected 4,53
Sink rate [m/s] min = 1.3 (+/- 0.2)
Speed [km/h] min = 29 ; trim = 44-71 ; max = 80 (+/-5)
Lines + risers length [m]  5.50 5.78 5.96 6.13 6.46 6.78 7.08
Total lines length [m]  237.47 245.76 253.79 261.59 276.38 290.82 304.44
Total take-off weight [kg]  75-100 80-105 85-110 90-115 100-125 110-135 120-145
Max take-off weight – competition  [kg]  120* 125* 130* 135* 145* 155* 165*
Canopy weight [kg]  4.03 4.32 4.45 4.58  4.92 5.2 5.63
Lines A-8000U: 050; 070; 090; 130 / Technora: 140; 190; 280; 340
Cloth Porcher Sport 38 g/m2, Dominico tex 34 g/m2, Porcher Sport Hard 40 g/m2, SR Scrim, SR Laminate 180 g/m2

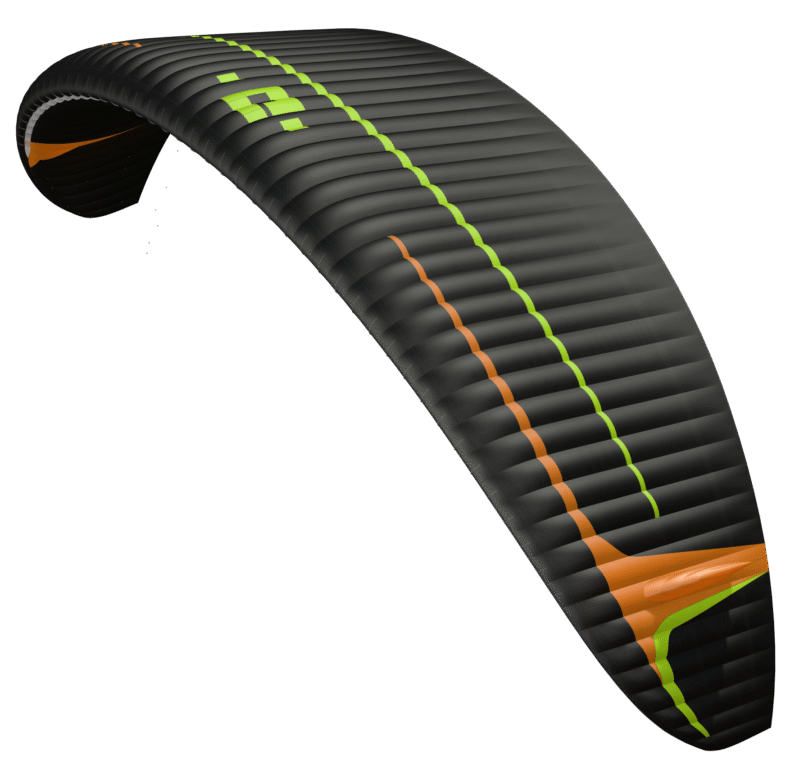

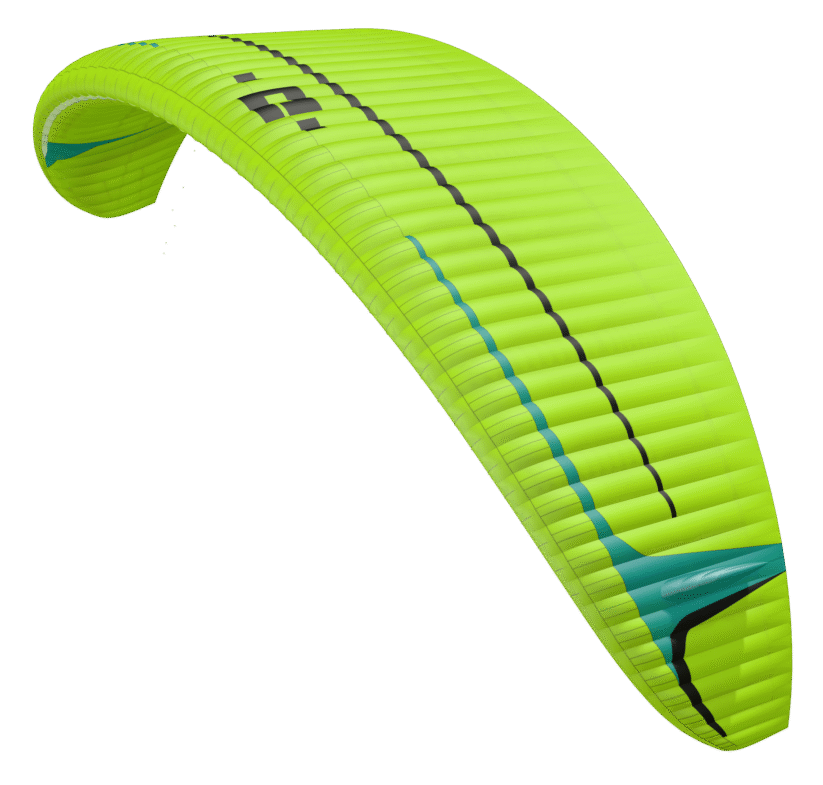

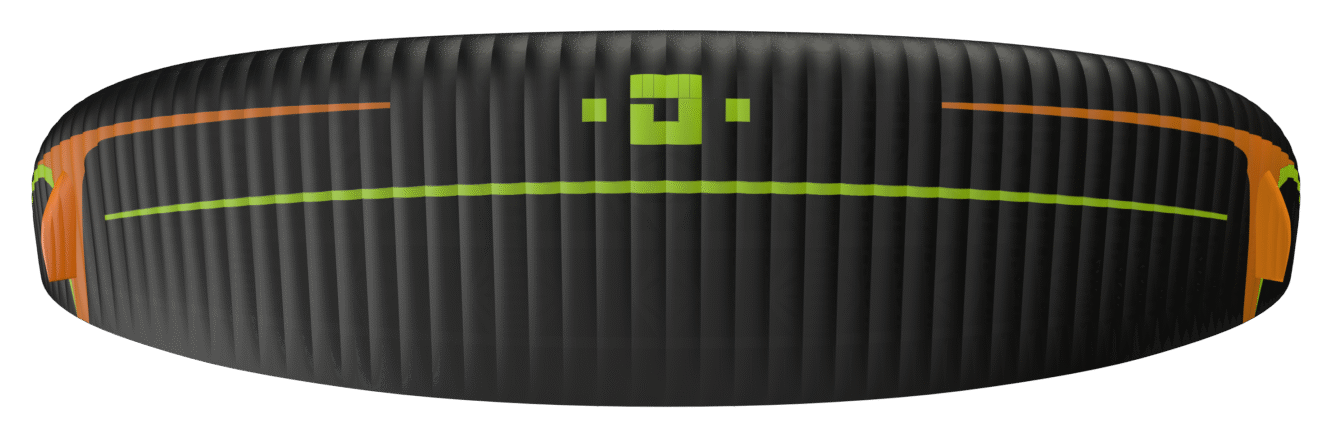

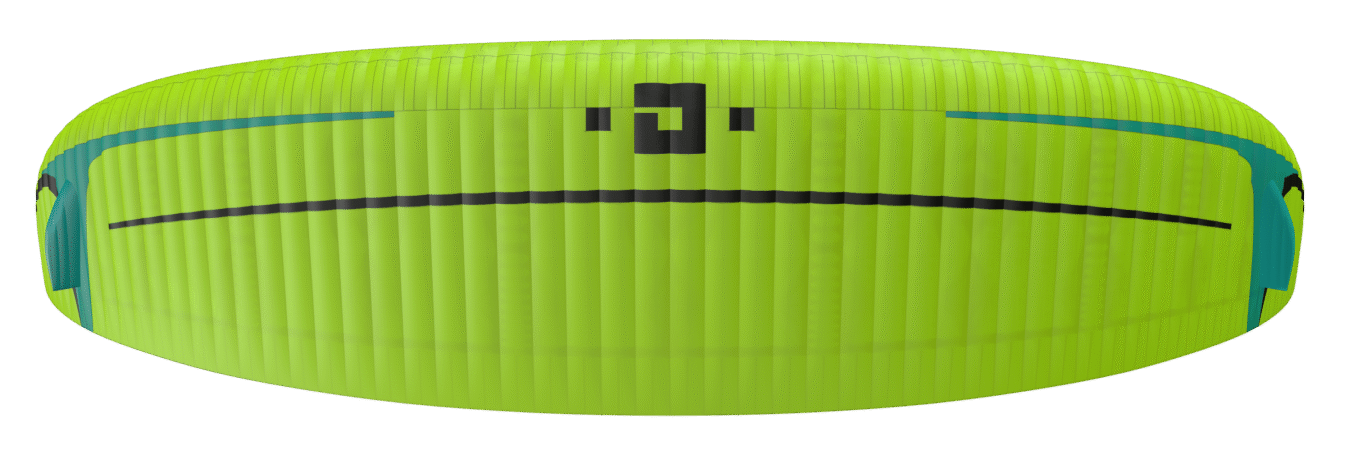

COLOR OPTIONS:

Dudek Warp Paraglider For Paramotor & Powered Paragliding


(Click Images to Enlarge)

NEED HELP DECIDING THE CORRECT SIZE GLIDER?

CONTACT US: (209) 786-7899
